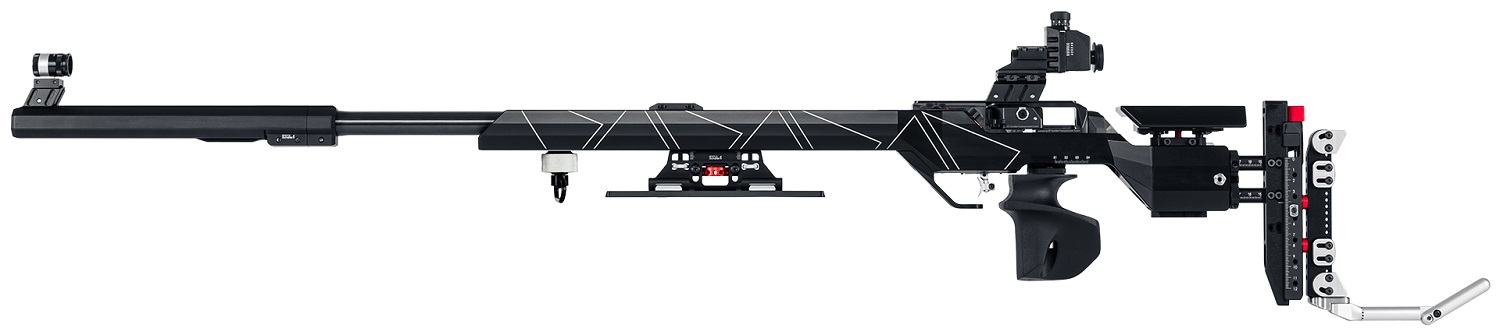

Anschütz Smallbore mod. 22 MAX

The new studie from Anschütz company. Master piece about small bore rifles.

22 MAX - Maximum performance. The new ANSCHÜTZ Premium small bore sporting rifle was developed with this claim in mind. Numerous innovative details make this small bore rifle the master of its class. A worldwide unique, completely newly developed bolt system, a concept for the storage of the barreled action in the stock trimmed to the highest precision, as well as the highest demands on the selection of the materials used. All this at high end premium level - 22 MAX!

Highest precision - that is what the 22 MAX was developed for! The worldwide unique bolt action, the polymer ball for individual oscillation behavior of the ANSCHÜTZ precision barrel and the well-known world-classtrigger 5018 ensure the smallest scattering circles. Everything in the well-known ANSCHÜTZ quality!

The very light and short firing pin of the 22 MAX barreled action guarantees minimum

shot development times. In addition, the firing pin hits the cartridge centrally at the lower

case edge, which causes a uniform ignition of the propellant charge and has a positive effect on the overall precision of this high-end small-bore rifle as a further detail.

To access the 22 MAX to set the safety, the loading lever, which is by a ball detent safe , can be easily pulled off, thus preventing the operation and cocking of the rifle. The large, symmetrically designed breech claws evenly dissipate the breech forces and provide maximum safety. The Barreled action can be adjusted by sliding safety to set the safety. Furthermore, the bolt can be removed quickly and easily by loosening the two safety slides on both sides.

ANSCHÜTZ triggers are known worldwide for their quality. The trigger 5018, which breaks like glass, leaves nothing to be desired. With a set trigger weight of 125 g, this trigger leaves our factory in Ulm. The trigger weight can be adjusted from 60 g - 490 g to suit your individual needs. The trigger blade can be moved, swivelled and adjusted in height. There is nothing better!

The barreld action's floating bearing holds the barrel radially in position using a polymer ball. The elasticity of the polymer ball allows the material to expand without tension due to the heat generated by the ready to fire . Furthermore, the barrel bearing block in which the polymer ball is mounted can be freely displaced and thus adjusted to the individual vibration behavior of the barrel. This has the advantage of tuning the barrel for a wide variety of ammunition types without having to attach additional weights to the tube. Thus, the balance of the rifle remains almost unchanged.

Innovative details make the stock what it is: unique! Whether it's the innovative grip connection with memory function, the ergonomic 9° angle of the buttstock for excellent contact of the head with the cheek piece or the many individual adjustment options on the fore-end raiser block, butt plate and cheek piece. This stock - a class of its own!

The butt plate for optimum contact with the shoulder. Length and height of the butt plate can be adjusted continuously and have adjustment wheels for fine adjustment. The hook can be swiveled 50 degrees to the left or right, the rear hook element can also be adjusted by 30 degrees. The feature that makes butt plate so unique is the eight contact elements. These make it possible to adjust to the individual shape of each shooter's shoulder and thus create an even, full contact. The contact elements can be freely offset to find the optimum contact point. The four middle contact elements can also be moved to the left and right, and the four outer ones can be swiveled up or down.

Versatile adjustment options that inspire. The front Allen screws lie directly on the stock and can thus be used for rough height adjustment. Continuous fine adjustment of the height is possible via the red adjustment wheel. The jaw support can be moved continuously forwards or backwards. To do this, it can be tilted by up to 15 degrees using the small adjustment wheels on the rear. A longer jaw support is also included with the scope of delivery.

The innovative palm rest can be loosened and fixed extremely quickly with the help of the red quick-release fastener with only 1/4 turn for maximum time savings in the 3-position competition. The palm rest has a very compact design, has an extremely grippy base plate and can be moved to the right and left as well as to the front and rear, thus placing the center of gravity as close as possible to the shooter. Another advantage is the maximum flexibility of mounting individual base plates without having to sacrifice the wide range of adjustment options. The laterally mounted fine adjustment wheels allow horizontal and lateral tilting of the palm rest. Optionally, the height of the palm rest can be increased by intermediate plates for the maximum best position.

The grip made of walnut wood with a non-slip coating can be mounted and changed quickly and easily, with a decisive advantage: the settings of the grip, such as the inclination and rotation, are made via the grip attachment integrated in the grip. The advantage is obvious: for each stop position, a grip can be mounted, adjusted and dismounted again. Thus, the grips with all the settings made can be changed depending on the discipline with just one screw, similar to what is already used with the butt plates.

The 660 mm barrel is extended by the muzzle tube . This allows the front sight to be continuously shifted to 250 mm and the sighting line length to be adjusted to the individual wishes of each shooter. On the underside of the muzzle tube is a prism rail for attaching a SCATT unit.

Continuous and consecutive numbering of the scales across the entire rifle and all attachments prevents confusion of the settings that are made and noted. A defined number describes a fixed point on the rifle. Each number occurs only once.

Including:

Cheeck piecve, Butt plate, Grip (size selection), Transport-box MEGA, Hand rest, parts box, Toolings, Manual and original group.

Delivered without sight set. Sight sets see accessories!

License required! Sale only to persons with a license for purchase.
