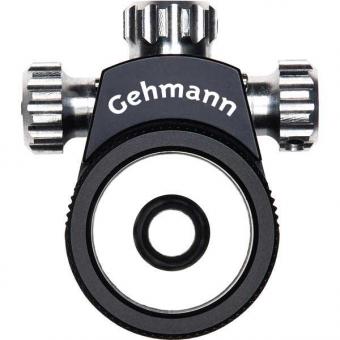

Ideal supplement addition to our anti-glare tube range, featuring external and internal thread (M.18) to accept iris, polariser or element holder below
Internal thread for attachment of foresight elements or colour filter and easy clamping in combination with shortened retaining ring
Adjustment range: height: 4mm, side: 2mm
Maximum adjustment track using Gehmann element holder in combination with movement adaptor: height: 8mm, side: 6mm
Accurate lock-in adjustment of height and/or side through knurled setting screws (including screw lock against undesired assembly)
Laser engraved scaling for fine tuning of the height and side
Manufactured out of aluminium and anodised in matt black to prevent unwanted reflection and/or glare, weight: only 18.5grms, length: 24mm
