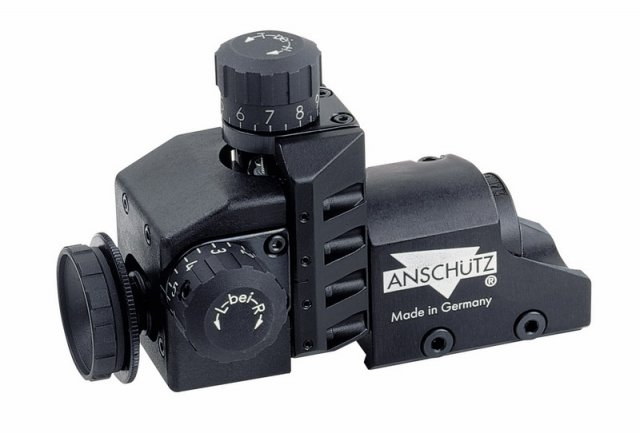

Universal micrometer sight 7002/20. tilting, with 20s clicks per revolution. 20s clicks: from click to click 0.2 mm at 10 metres and 1.0 mm at 50 metres.
Including tool set 1 (order no.: 014292), includes Allen key 1.5/2/2.5/3/4.
With height and windage adjustment by ratchet screws. To compensate for tilting around the longitudinal axis tilting.
Without snow cover, suitable for all ANSCHÜTZ rifle models with 11 mm prism rail on the bolt case. Not suitable for centrefirecaliber
Difference between rear sights 6805 and 7002:
Both rear sights, the 7002 as well as the 6805, are suitable for all ANSCHÜTZ match rifles.
Difference: In the rear sights 6805, the elevation adjustment slides in an adjustable V-block, the windage on a dowel pin. On the rear sights 7002 the height and windage run on ground ball bearings. Furthermore, this model offers the possibility of tilting compensation. Both rear sights operate backlash-free.
Technical data
Width: 30 mm
Weight: 210 g
Height: 65 mm
Length: 100 mm
Material: Aluminum
